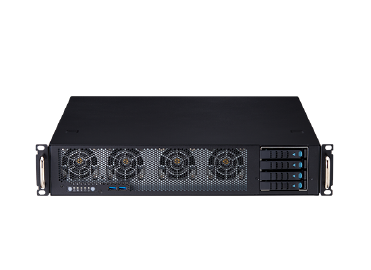

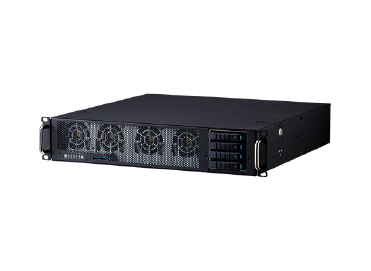

AXE-7220TR

2U Short-depth AI GPU Server with AMD EPYC™ 9004/9005 Series Processor

  • Key Features
  • Single AMD EPYC™ 9004/9005 Series Processor
  • 2U Short-depth Chassis (450mm) maximizes rack space efficiency for compact deployments
  • Up to 8x DDR5 PC-6400 MT/s DIMM slots
  • Supports 2x FHFLDW Gen5 GPUs
  • 4x hot-swappable fan modules and SSD drive bays
문의하기 데이터시트
The ADLINK AXE-7220TR is a compact 2U short-depth AI GPU server powered by AMD EPYC™ 9004/9005 series processors with up to 300W TDP. Purpose-built for space-constrained edge environments, its 450mm short-depth chassis maximizes rack efficiency without compromising performance, delivering high-bandwidth workloads and real-time AI inference in tight or remote deployment sites.

Key Value Propositions

  1. Compact Edge Optimization: Features a 450mm short-depth 2U chassis, ideal for maximizing space efficiency in small-scale racks and confined edge locations.
  2. Dual-GPU Performance: Supports up to two FHFLDW PCIe Gen5 x16 GPUs, delivering massive horsepower for intensive AI processing and high-speed data analytics.
  3. High-Density Thermal Management: Equipped with 4x internal fan modules and support for high-speed DDR5-6400 memory up to 1TB, ensuring stable, high-performance operation in a compact form factor.

*PCIe lane configuration and memory speed depend on the installed AMD EPYC™ CPU SKU and memory population.

  • .

    • .
