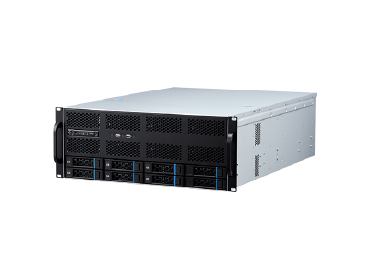

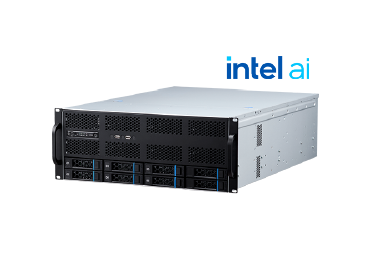

AXE-7440GW
4U AI GPU Server supports workstation CPUs, the Intel ® Xeon ® 600 Processors
- Key Features
- 4U chassis with a single Intel® Xeon® 600 Processors for Workstations, up to 350W TDP
- 11-slot expansion design, including 4x PCIe x16(1x via MICO) & 2x PCIe x8 & 2x PCIe x4 via MICO
- Up to 4x GPU cards
- 8x 2.5”/3.5” SATA HDD
- 3x Internal fan modules & 2x optional external fan modules
The ADLINK AXE-7440GW is a high-performance 4U AI GPU server powered by workstation-class Intel® Xeon® 600 processors with up to 350W TDP. Engineered for massive parallel processing, it features an 11-slot expansion design supporting up to four double-width PCIe Gen5 x16 GPUs via an extension board, providing the specialized computational power required for deploying large language models (LLMs) and complex multimodal AI at the edge.
Key Value Propositions
- Extreme GPU Scalability: Accommodates up to 4x dual-slot Gen5 x16 GPUs to accelerate heavy-duty generative AI training and real-time inference.
- Flexible High-Density Storage: Equipped with 8x 2.5"/3.5" SATA HDD bays and dual M.2 NVMe slots for rapid data access and massive local storage capacity.
- Advanced Thermal Resilience: Features 3x hot-swappable internal fan modules with optional rear exhaust fans to ensure stable performance for high-TDP workstation-class processors.
-
.
- .
